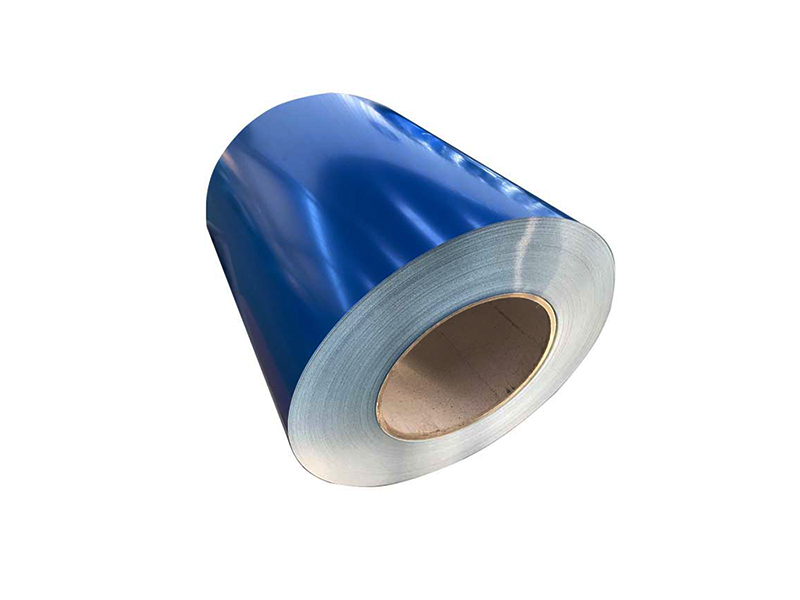

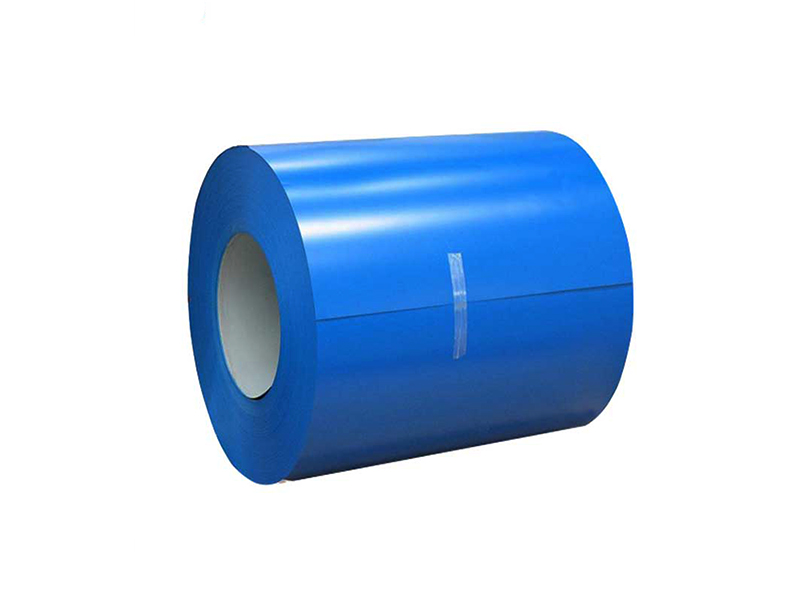

PE/PVDF Color Coated Aluminum Coil

Color coated Aluminum Sheet is a material produced by applying decorative and protective coatings to the surface of aluminum coil. It combines the lightweight and high-strength properties of aluminum with the excellent aesthetics, weather resistance, and corrosion protection provided by advanced coating systems.

PE/PVDF Color coated Aluminum Coil

Thanks to its outstanding durability, design flexibility, and processing performance, pre-painted aluminum is widely used in building facades, roofing systems, ceilings, composite panels, household appliances, transportation, and decorative applications.

Coating type	Main character	Typical Applications	Typical alloy
PE	High Gloss and Excellent Appearance: PE coatings provide a thick, smooth, and highly glossy finish, delivering outstanding decorative effects. High Hardness and Scratch Resistance: The cured coating film offers excellent hardness, abrasion resistance, and scratch resistance. Cost-Effective Solution: With moderate cost and reliable performance, PE coating is one of the most economical and widely adopted coating options. Limiation: Moderate Weather Resistance: Compared with fluorocarbon coatings, PE coatings have relatively limited resistance to long-term UV exposure and outdoor weathering, making them more suitable for indoor applications or general outdoor environments.	Interior applications: Ceilings, partitions, and appliance panels. General decoration: Applications with no weather resistance requirements. PE is the preferred choice for applications requiring a high-gloss finish.	1050/1060/1100/3003/3005/3105/5005/5083,as request
PVDF	Outstanding Weather Resistance: PVDF coatings provide exceptional resistance to UV radiation, corrosion, and environmental aging, maintaining excellent color and gloss retention even after prolonged outdoor exposure. Long Service Life: In outdoor applications, PVDF-coated aluminum can maintain its appearance for 15–20 years without significant fading, and under suitable conditions, the service life can exceed 40 years. Superior Chemical and Corrosion Resistance: The fluorocarbon resin structure offers excellent protection against harsh weather and corrosive environments. Limiation: Low Gloss Finish: Due to the fluorocarbon composition, PVDF coatings typically feature a low-gloss or matte appearance, which is highly favored in modern architectural applications.	Building exteriors: Curtain walls and roof panels for airports, stadiums, and landmark buildings. Transportation infrastructure: Highway guardrails, bridges, etc. Highly corrosive environments: Coastal buildings, chemical plants, etc.	1050/1060/1100/3003/3005/3105/5005/5083,as request
Back side PE/Epoxy	Excellent Adhesion Epoxy coatings provide outstanding bonding strength to metal substrates, ensuring long-lasting coating performance. Superior Corrosion Resistance They offer excellent protection against moisture, chemicals, salts, and corrosive environments.		1050/1060/1100/3003/3005/3105/5005/5083,as request

Product Technical Parameter

Alloy	1xxx , 3xxx , 5xxx , SERIES
Thickness（mm）	0.25-2.2MM for coil, 0.25-5.0mm for sheet
Width（mm）	Max.2650MM
Length（mm）	Max.12000MM
Surface treatment	PE/PVDF/Epoxy Color coating

Package

Inside: PE protective film on surface

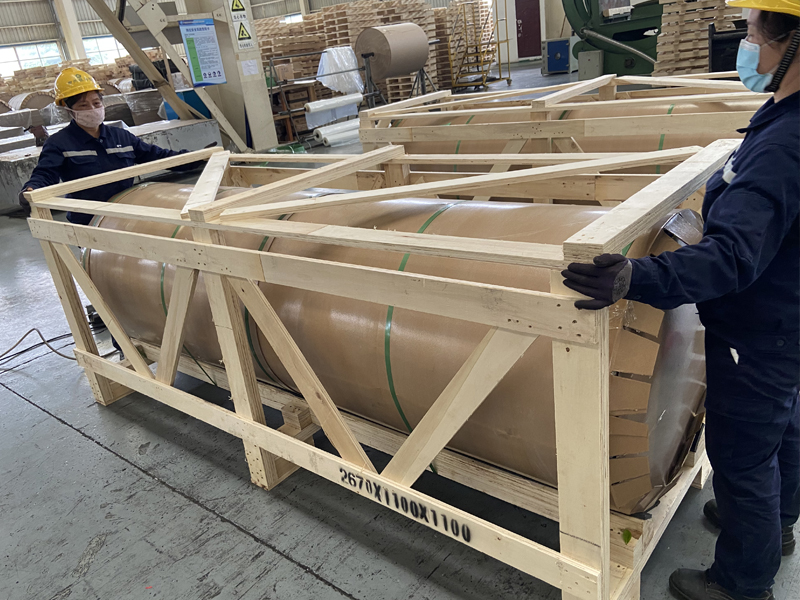

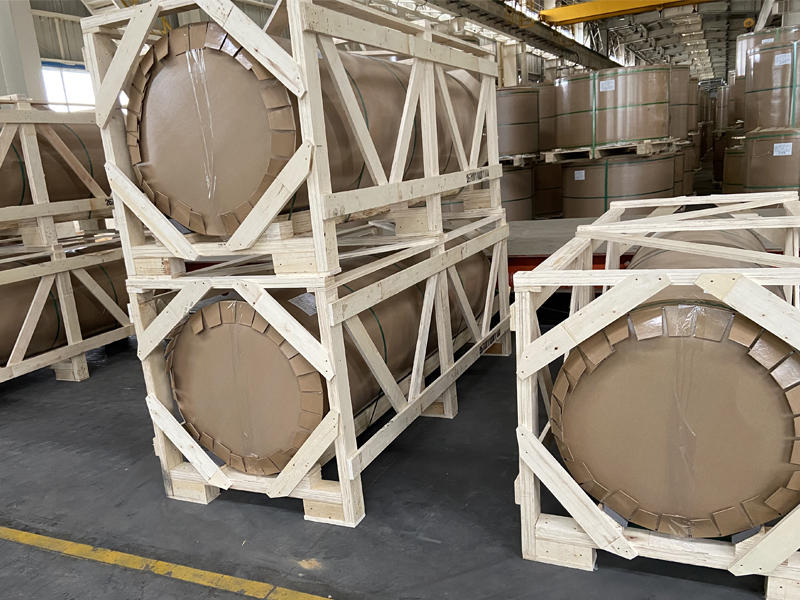

Outside: Aluminum sheet will be packed on seaworthy and safety exporting wood pallet.

High Purity:

Contains over 99.7% aluminum, ensuring minimal impurities and optimal performance.

Excellent Conductivity:

Outstanding electrical and thermal conductivity, ideal for specialized applications like electronics and heat management.

Smooth Surface Finish:

Provides a clean, smooth surface, which is ideal for both functional and aesthetic purposes.

Advantage

Lightweight:

Despite its strength, it remains lightweight, making it suitable for cost-effective applications.

Superior Corrosion Resistance:

Resists corrosion, making it a long-lasting material in challenging environments.

Versatile Processing:

Can be easily rolled and shaped into various forms without compromising its quality.

PE/PVDF Color Coated Aluminum Coil
