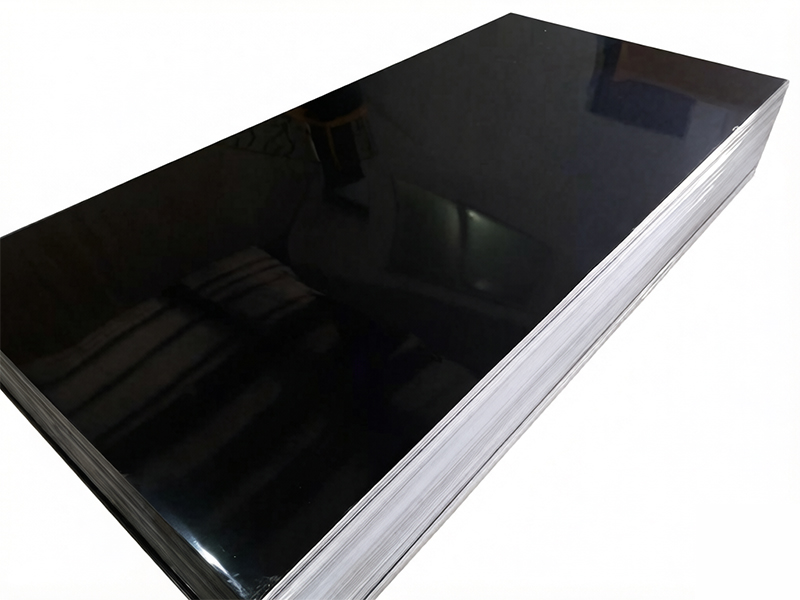

PE Color Coated Aluminum Sheet

PE color-coated aluminum sheets, also known as polyester (PE)-coated color-coated aluminum sheets or coils, are made from aluminum sheets or coils as the substrate, with a polyester coating formed by multiple rounds of roll coating and bake curing. This coating forms a continuously solid film with strong adhesion, offering both protective and decorative properties.

PE Color coated Aluminum Sheet

The main features of this product include: excellent decorative appeal, strong adhesion, good processability, high cost-effectiveness, and UV resistance. Note that the primary advantages of the PE coating lie in its decorative appeal and cost-effectiveness for indoor applications. When used in outdoor environments exposed to prolonged sunlight, its weather resistance is inferior to that of PVDF fluorocarbon coatings.

Coating type	Main character	Typical Applications	Typical alloy
PE	High Gloss and Excellent Appearance: PE coatings provide a thick, smooth, and highly glossy finish, delivering outstanding decorative effects. High Hardness and Scratch Resistance: The cured coating film offers excellent hardness, abrasion resistance, and scratch resistance. Cost-Effective Solution: With moderate cost and reliable performance, PE coating is one of the most economical and widely adopted coating options. Limiation: Moderate Weather Resistance: Compared with fluorocarbon coatings, PE coatings have relatively limited resistance to long-term UV exposure and outdoor weathering, making them more suitable for indoor applications or general outdoor environments.	Interior applications: Ceilings, partitions, and appliance panels. General decoration: Applications with no weather resistance requirements. PE is the preferred choice for applications requiring a high-gloss finish.	1050/1060/1100/3003/3005/3105/5005/5083,as request

Product Technical Parameter

Common Alloy	1100、1060、3003、3004、3105、5052, as requested
Thickness（mm）	0.2-2.2MM for coil, 0.25-5.0mm for sheet
Width（mm）	Max.2650MM
Length（mm）	Max.12000MM, coil length is as requested.
Surface treatment	Top side: 15-18 mic PE single coat or 25 mic PE double coat; back side: 5-8 mic PE or epoxy.

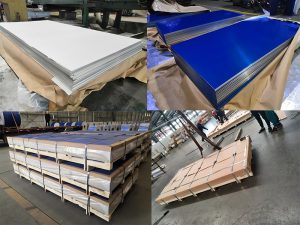

Package

Inside: Transparent PE protective film on surface

Outside: Aluminum sheet will be packed on seaworthy and safety exporting wood pallet.

High Purity:

Contains over 99.7% aluminum, ensuring minimal impurities and optimal performance.

Excellent Conductivity:

Outstanding electrical and thermal conductivity, ideal for specialized applications like electronics and heat management.

Smooth Surface Finish:

Provides a clean, smooth surface, which is ideal for both functional and aesthetic purposes.

Advantage

Lightweight:

Despite its strength, it remains lightweight, making it suitable for cost-effective applications.

Superior Corrosion Resistance:

Resists corrosion, making it a long-lasting material in challenging environments.

Versatile Processing:

Can be easily rolled and shaped into various forms without compromising its quality.

Customers' comments on

Customers' comments on PE Color Coated Aluminum Sheet

Coating layer no crack after bending, the aluminum sheet quality is good.
